Unbreakable Tire Safety: AEGIS GripSafe’s Patented Technology
When a tire blows out, it’s one of the most terrifying scenarios a driver can face. The sudden loss of pressure, combined with the tire detaching from the rim, often leads to a complete loss of vehicle control. This isn’t just a minor inconvenience; it’s a major safety hazard. That’s where AEGIS GripSafe steps in, not just with a product, but with a robust intellectual property (IP) strategy that secures its position as a leader in post-blowout tire safety.
AEGIS GripSafe’s core strength lies in its unique technology designed to prevent the tire from dislodging after a blowout. This isn’t just a clever feature; it’s a meticulously engineered solution, protected by a comprehensive set of patent claims that establish a formidable IP moat. At AegisRim, we’ve invested years in R&D to create a system that not only saves lives but is also legally defensible across North American markets.
The Critical Challenge: Tire Blowouts and Loss of Control
In a typical wheel setup, when a tire suffers a blowout, the sudden loss of air pressure causes the tire bead to lose its grip on the rim’s first bead seat. The bead then slides inward, detaching from the wheel and preventing the tire and wheel from rotating synchronously. This crucial failure point often results in the vehicle veering off course, leading to a complete loss of control.
Drivers typically have very little time, if any, to react and regain stability, which can culminate in severe accidents. The physics are unforgiving: at highway speeds (120 km/h / 75 mph), a tire blowout creates asymmetrical forces that generate massive yaw moments within 0.3-0.5 seconds—faster than human reaction time. The result? Catastrophic loss of control, rollovers, and multi-vehicle collisions.
Understanding Traditional Wheel Failure Modes
The conventional wheel design relies on three primary mechanisms to keep the tire seated:
- Air pressure: Internal tire pressure (typically 30-35 PSI) pushes the bead against the rim
- Friction: The interface between rubber bead and metal rim provides limited grip
- Bead seat geometry: Slight angular design helps wedge the bead in place
The problem? All three mechanisms fail simultaneously during a blowout. When pressure drops to zero, friction vanishes, and geometry becomes irrelevant. The tire simply slides off the bead seat, and disaster follows.
AEGIS GripSafe directly addresses this life-threatening flaw by ensuring the tire maintains a secure connection with the wheel hub even after complete deflation—not through pressure or friction, but through mechanical engagement.
AEGIS GripSafe’s Patented Breakthrough: The Anti-Slip Cog Ring

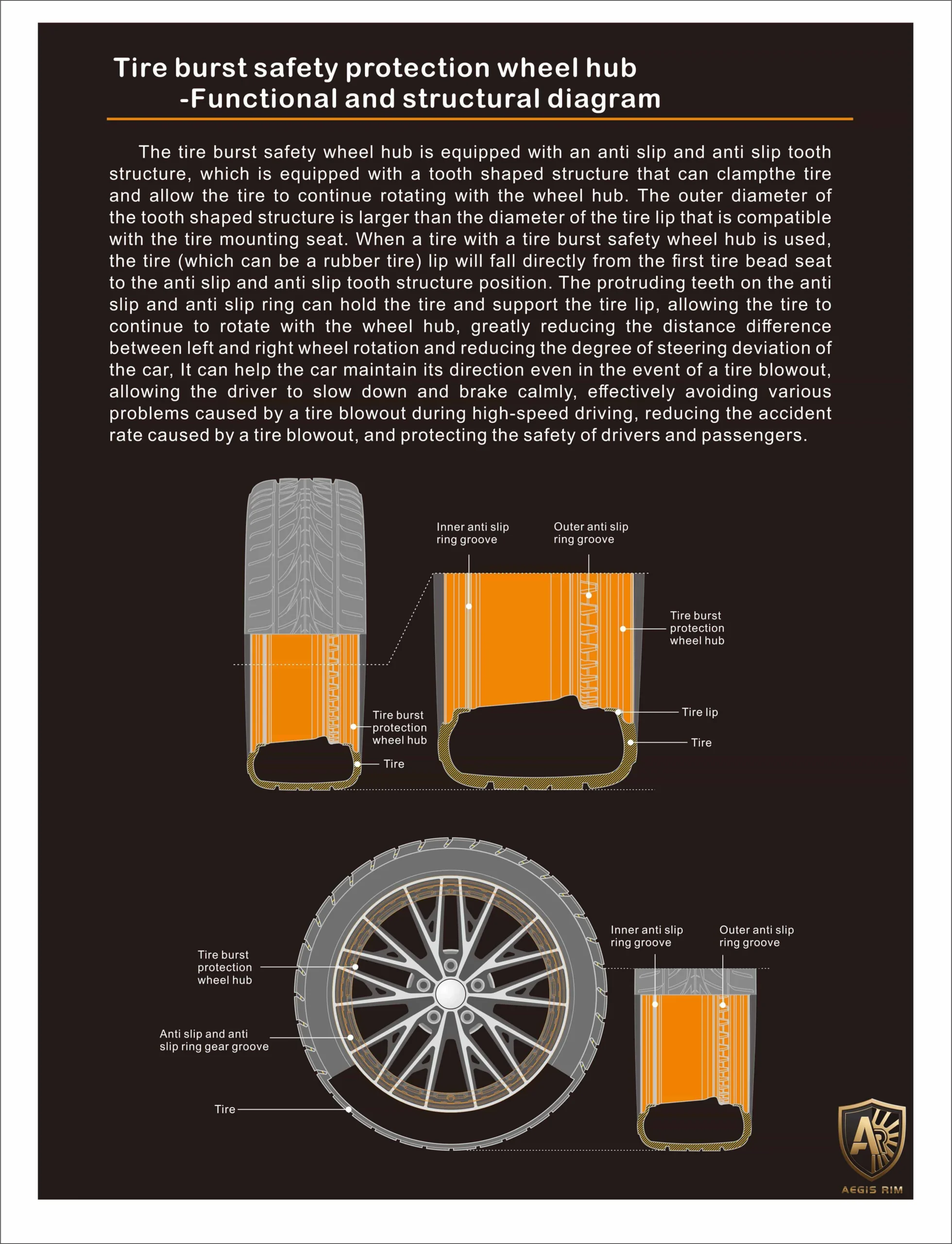

At the heart of AEGIS GripSafe’s innovation is the introduction of a distinctive anti-slip cog ring. This key component is strategically positioned on the side of the rim’s first bead seat. Its primary function is to ensure that even after a tire deflates, it remains tightly connected to the wheel hub, thereby preventing vehicle instability and maintaining driver control.
This isn’t an incremental improvement over existing designs—it’s a fundamental reimagining of how wheels can provide safety. Traditional run-flat systems rely on reinforced tire sidewalls that eventually collapse under sustained load. AEGIS GripSafe uses mechanical engagement that works indefinitely, regardless of tire condition.
Engineering for Safety: Structure and Function
The anti-slip cog ring is an ingenious piece of engineering. Here’s a closer look at its critical features:
- Protruding Structure: Unlike conventional rim designs, the cog ring features a raised, protruding section. Its outer diameter is specifically designed to be larger than that of a traditional bead seat, providing a vital physical barrier and support
- Enhanced Grip: The protruding part incorporates external grooves and individual anti-slip teeth or cogs. These elements are meticulously crafted to provide superior gripping force that activates precisely when air pressure is lost
- Optimized Engagement: Working in conjunction with a corresponding inner groove design on the tire bead itself, these features create an efficient meshing mechanism. This ensures that in extreme conditions, such as a blowout, the tire bead is securely held in place, preventing it from detaching and sliding inward
- Load Distribution: The cog design distributes retention forces across multiple engagement points, preventing stress concentration that could damage the tire or rim during deflated operation
Precision Manufacturing and Material Science
The integrity and performance of the anti-slip cog ring are further bolstered by its advanced manufacturing process and material selection:
- Segmented Construction: The cog ring isn’t a single, monolithic piece. Instead, it’s composed of multiple arc-shaped segments (for example, three segments). This segmented design offers significant advantages in both manufacturing efficiency and structural integrity, allowing for easier integration into existing wheel designs
- High-Reliability Welding: These segments are precisely joined to the main rim body using high-reliability friction stir welding. This advanced welding technique ensures a robust, durable connection that can withstand the extreme forces encountered during a tire burst—forces that can exceed 5,000 pounds instantaneously
- Lightweight Durability: The arc-shaped cog ring segments are preferably manufactured from die-cast aluminum alloy. This material choice balances lightweight construction with the necessary mechanical properties to ensure strength and performance without adding excessive unsprung weight (typically adding less than 2 pounds per wheel)
- Corrosion Resistance: Surface treatments and alloy composition ensure long-term durability in harsh environments including road salt, extreme temperatures, and chemical exposure
Every aspect of this design—from the tooth profile geometry to the welding sequence—has been optimized through extensive finite element analysis (FEA) and real-world crash testing to ensure maximum safety with minimal weight penalty.
Building an Intellectual Property Moat
This entire system – the specific structural design, the material choices, and the manufacturing process – is comprehensively protected by AEGIS GripSafe’s patent portfolio. By clearly defining the technical boundaries of its post-blowout tire retention mechanism, these patents create a formidable barrier for competitors.
Comprehensive Patent Coverage
AegisRim’s intellectual property strategy extends beyond a single patent. Our portfolio includes protection for:
- Mechanical Design Patents: Covering the specific geometry, tooth profiles, and engagement mechanisms of the anti-slip cog ring system
- Manufacturing Process Patents: Protecting the friction stir welding techniques and assembly sequences that ensure structural integrity
- Material Composition Patents: Securing proprietary aluminum alloy formulations optimized for this specific application
- Integration Methods: Patents covering how the system interfaces with both tires and vehicle suspension components
- Functional Claims: Broad protection for the underlying principle of mechanical bead retention during pressure loss events
It becomes incredibly difficult for other manufacturers to develop a similar critical anti-off mechanism without infringing on AEGIS GripSafe’s intellectual property. This strategic patenting solidifies AEGIS GripSafe’s position, establishing a robust “technical moat” in the vital field of safe driving after a tire blowout.
Competitive Advantage and Market Position
This IP protection provides multiple strategic advantages in the North American market:
- Market Exclusivity: Competitors cannot simply copy our technology, forcing them to pursue inferior alternatives or license our patents
- Premium Positioning: Patent protection allows us to maintain premium pricing reflective of the genuine safety innovation we provide
- Partnership Leverage: OEM automotive manufacturers seeking this safety technology must work directly with AegisRim
- Regulatory Advantage: As safety standards evolve, our patented solution positions us to meet or exceed new requirements
- Brand Trust: Patent protection validates our engineering claims and demonstrates genuine innovation rather than marketing hype
It’s not just about having a great product; it’s about legally safeguarding the innovation that makes that product revolutionary and ensuring that when drivers invest in AEGIS GripSafe, they’re getting authentic, patent-protected safety technology that simply cannot be replicated by competitors.
Innovation Protected, Safety Guaranteed
At AegisRim, we believe that groundbreaking safety technology deserves equally robust intellectual property protection. Our comprehensive patent portfolio surrounding the AEGIS GripSafe anti-slip cog ring system represents years of engineering innovation, material science research, and real-world safety testing.
This isn’t just legal protection—it’s a guarantee to our customers that they’re investing in genuine, irreplaceable safety technology. When you choose AEGIS GripSafe wheels, you’re choosing a system that’s been engineered from the ground up to save lives, protected by patents that ensure this technology remains at the forefront of automotive safety innovation.
Because in the critical moments after a tire blowout, imitation simply isn’t good enough. You need the real thing—and that’s exactly what our patent portfolio guarantees you’ll receive.
